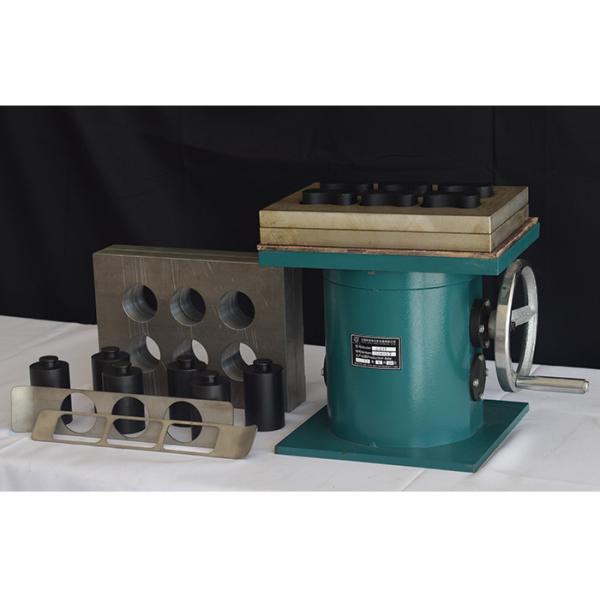

Shear Resistance Testing Foundry Sand Mixer Machine Multiple Standard

Name: Shear Resistance Testing Foundry Sand Mixer Machine Multiple Standard
Brand: WUWAY
Price: 1 USD

Shear Resistance Testing Foundry Sand Mixer Machine Multiple Standard Manufactures

Brand Name : WUWAY

Model Number : WW-SM0206

Place of Origin : China

MOQ : 1 pc

Payment Terms : T/T

Supply Ability : 20 + pcs + per month

Delivery Time : 15 work days

Packaging Details : wood box

weight of vibration part : 25 kg

height of vibration shocking : 35 mm

compression sample : 1250 g

tensile sample : 800g

thermal stability sample : 120g

Number of vibration shocking : 3 times

Contact Now

Description:

1. Its main use is to make resin sand standard sample. Th samples are used to test gas permeability, compression resistance, shear resistance, tensile strength, thermal stability.

2. Multiple standard samples with a certain degree of compactness can be produced at the same time

main specifications

weight of vibration part	25 kg
height of vibration shocking	35 mm
Number of vibration shocking	3 times
application range	compression sample, tensile sample, thermal stability sample
weight of additional block
compression sample	1250g
tensile sample	800g
thermal stability sample	120g

weight of vibration part 25kg

height of vibration shocking 35mm

Number of vibration shocking 3 times

application range compression sample, tensile sample, thermal stability sample

weight of additional block

compression sample: 1250g

tensile sample: 800g

thermal stability sample: 120g

Instrument features

1. Th structure is made of rack, bottom plate, sample box, pre-filled box, broaches, guide plate, weight block,

handwheel, cam and so on.

2. It can make several standard samples simultaneously.

main applications

It is widely used in foundry, machinery, casting, qualitative inspection, scientific research, university lab..
